Galvanized Wire Mesh is woven of selected plain steel wire in square opening, normally by plain weave. It offers precise construction, uniform opening, excellent corrosion and rust resistance. The surface treatment for galvanized wire mesh is electro galvanized or hot dipped zinc plated. Both available for customers' choice according to demand. Galvanized wire mesh can be made galvanized before weaving or after weaving.
Supplying Forms: Cut into mesh discs or packed in rolls.
Wire Materials: Mild steel or iron wire. Wire diameter:BWG12# to BWG24#.
Features:
*Flexible, easy to shape
* Variety of opening sizes
*Rolls, sheets or panels, and cut-to-size
*Available in small opening sizes
*Selection of normal round wire weave or crimped styles
*Strength, durability
Hot-dipped Galvanized Welded Wire Mesh
6,3*6,3 0,55mm 1*30mt
10,6*10,6 1,00mm 1*30mt
12,7*12,7 0,81mm 1*30mt
PVC Coated Welded Mesh
12,7*12,7 (PVC) 1,30mm 1*30mt
12,7*12,7 (PVC) 1,30mm 1,2*30mt
1,2*30mt 10,6*10,6 (PVC) 1,45mm 1*30mt
10,6*10,6 (PVC) 1,45mm 1,2*30mt
19*19 (PVC) 1,45mm 1*30mt
19*19 (PVC) 1,45mm 1,2*30mt
25*25 (PVC) 2,05mm 1*30mt
Galvanized Iron Square Wire Mesh
20MESH/0,35mm 1*30mt
28MESH/0,20mm 1*30mt
30MESH/0,30mm 1*30mt
40MESH/0,25mm 1*30mt
WIRE:BINDING,1.626 MM ,GALVANIZED MILD STEEL
Item Specifications :
WIRES,BINDING,
DIAMETER : DIA 1.626 MM X 16 SWG
MASS : APPROX 25 OR 50 KG ROLLS
MATERIAL : GALVANISED, ANNEALED MILD STEEL
WIRE, GALVANISED, ANNEALED MILD STEEL,
(IN APPROX. 25 OR 50 KG. ROLLS) S.W.G 16
WIRE:1.62 MM X 150/200 FT ,16 SWG DIA,304 SS,SOLID
Item Specifications :
WIRES,ROUND, DIAMETER : 16 SWG
MATERIAL : 304 SS, 18.8% CHROME NICKEL
STRUCTURE : SOLID
HEAT TREATMENT : BRIGHT ANNEALED,
ROLL : 150/200 FT COIL.
DIA : 16 SWG
Electric galvanized after welded mesh
BWG24 1/2 " X 1/2 " X 1m X 30m
BWG22 1 " X 1 " 1m X 30m
BWG22 1 " X 1/2" 1m X 30m
BWG16 2 " X 2' 1m X 30m
Application: Galvanized crimped wire mesh is widely used as sieve and filters in the mine, coal, grain sifting, etc. Flat surface galvanized wire mesh is used as window screening, safety guards on machinery enclosures.
Steel Wire Mesh Before Galvanizing:

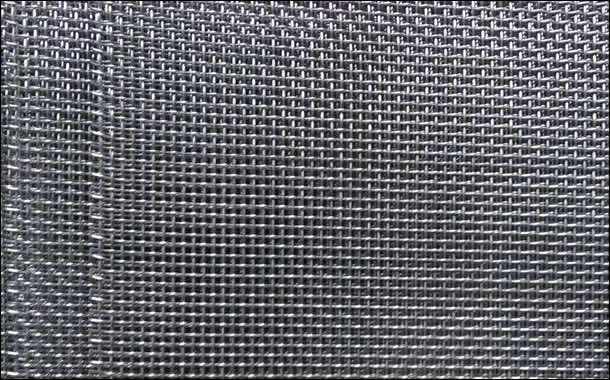

Steel Mesh Edged, Hot Dipped Galvanized:

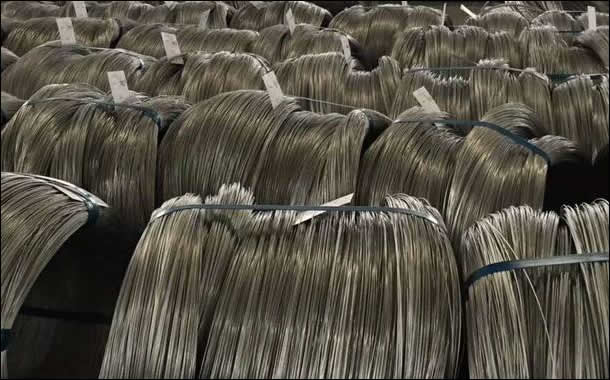

Galvanized Wire used for making of Galvanized Mesh and Netting:
Specification of Galvanized Wire Mesh, Plain Woven, Square Opening:
| Mesh | Wire Dia.(mm) | Aperture(mm) |
| 2meshx2 mesh | wire dia.1.60 | 11.10 |
| 4meshx4 mesh | wire dia.1.0 | 5.35 |
| 6meshx6 mesh | wire dia.0.80 | 3.43 |
| 8meshx8 mesh | wire dia.0.60 | 2.57 |
| 10meshx10 mesh | wire dia.0.50 | 2.04 |
| 12meshx12 mesh | wire dia.0.50 | 1.61 |
| 16meshx16 mesh | wire dia.0.40 | 1.18 |
| 20meshx20 mesh | wire dia.0.30 | 0.97 |
| 30meshx30 mesh | wire dia.0.23 | 0.62 |
| 40meshx40 mesh | wire dia.0.21 | 0.43 |
| 50meshx50 mesh | wire dia.0.19 | 0.32 |
| 60meshx60 mesh | wire dia.0.15 | 0.27 |
