Stainless steel wire mesh is populary used in making of hook strip screens, framed shale shaker screen, pleated screens and various sieves manufacture.
Screen Mesh for Shale Shaker Screen
304,316, stainless steel
Technical Details:
40x40 mesh type 316 screen.
40X40 mesh type 304 screen
Material : SS316 SS304
Mesh: 16 x 16 mesh
Dia wire : 0.7 mm
Width : 36"
20 Mesh SS316L screen, 1.22x15M
8 Mesh SS316L screen, 1.22x15M
80 Mesh SS316L screen, 1.22x15M
Technical Specs of the Mine Sieving / Shaker Screen with Reinforced Hooks:
Steel mesh opening 2.25*50mrn (50//2070mm) wire dia. l mm , with reintorced hooks in plain steel, length 2070, width 795-mm
Stainless steel (304) mesh opening 2.5*50mm, (50//2575mm) wire dia. mm, with reinforced hooks in plain steel, length 2575, width 990mm

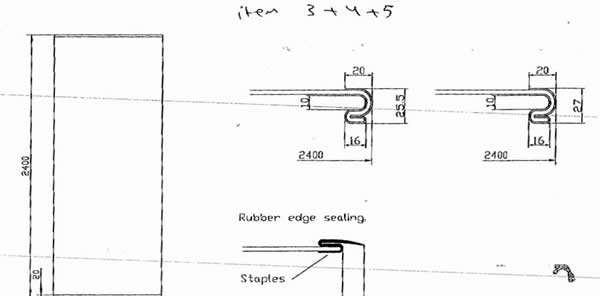

Stainless steel (304) mesh opening 2.2•2.2mm, wire dia. 1.2 mm width 985mm, length 2400, rubber edge sealing 112400, with reinforced hooks in plain steel 10*20
Stainless steel (304) mesh opening 7.1*7.l mm, wire dia. 1.5 mm width 985mm, length 2400, rubber edge sealing 2400 , with reinforced hooks in plain steel 10*20
Stainless steel (304) mesh opening 3 *3mm, wire dia. 1.5 mm width 985rnrn, length 2400, rubber edge sealing2400, with reinforced hooks in plain steel 10*20mm
With given requirements of spare screen mesh, we will provide technically details (fully complying) and including the following:
Technical details as shown in the enquiry
Prices FOB international seaport or CFR seaport
Payment term
Shortest delivery time
Offer validity
Shipping weight and packing dimensions
