Stainless Steel Wire Mesh Belt, Conveyor Belt, Dryer Belt

Stainless steel conveyor belts made of stainless steel wire can be popularly used in ceramics, pharmaceutical industries, food processing (baking, freezing and cooling of bread and others), metallurgy, building materials, glass treating, printing and other industries. Major structures applied for ss belts manufacture include V balanced weave, flat flex, chain drival spiral mesh, duplex mesh, looped wire and chevron. Our stainless steel balanced weave wire belt consists of a series of alternating left-hand and right-hand spirals fastened by a straight cross-rod connector.

Features:
The ss mesh belting offers an open construction and excellent strength for quick drainage and air circulation. This design allows for easy cleaning and provides a smooth carrying surface.

Material: AISI304, 304L, 316, 316L, 430

Stainless Steel Conveyor Belt made of 316 and 316L grade stainless steel wire and rod material
SS 316 grade metal conveyor belting is mainly used in food, pharmacy making industries. Popular structures include compound balanced, looped wire and balanced belting.

Mesh Conveyor Belt Types:
Flat-flex Wire Belting Rolls and Panels, Duplex Weave, Chain Drive Balanced Weave Mesh Plate, Balanced Weave Mesh Belt, Flat Wire Belt, Spiral Mesh Strips, Loop Wire Belts, Chevron Weave Mesh Screen, Honeycomb mesh, Diamond net or Rhombus Mesh, Special Shape Belts.

Belt conveyor edges types: single loop edge, double loop edge, C-cure edges. Fixing methods of the edges include clinched or button head welded.

Features:
This kind of metal conveyer belt has smooth surface;
Corrosion resistance;
Acid, alkali, high temperature resistance.

We supply following Conveyor Belt Mesh Products:

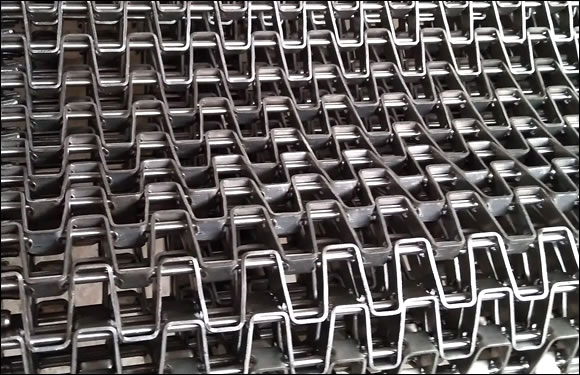

Honey Comb 304 SS Dryer Belt
SS 304 Honey Comb Chain Belt for Drying Uses
1m width x 7 m length
Chained belt structure withstanding 700 kg weight capacity.
Pitch : 1" x 1" Width : 1000mm
Patti Size: 1.5 mm Thick X 12.5 mm Width
Material: stainless steel 304



Conveyor Continuous Belting
For woodprocessing industry
Material: nicro 52.6 / nicro 62.5 stainless steel
Belt length: 32.600 mm. +/- 50 mm.
Belt width: 2.650 mm +/- 2 mm.
Belt thickness: 2,0 mm +/- 0,2 mm.
Joint: duplex (bi-lateral) welding at 80° angle
Surfaces: polished to g-4.0



Stainless Steel Mesh Conveyor Belt
Thick wire diameter of 2 mm distance between the wires (pitch) about 11 mm
Thin wire diameter 1.2 mm distance between the wires (pitch) approximately 13 mm
Mesh length about 750 cm
Mesh width 206 cm
Material: Stainless steel wire



430 Stainless Steel Mesh Conveyor Belt / Dryer Conveying Belt
Belt width 300mm( 3 Spiral pitch ):
Spiral pitch 100mm
Rod Pitch 7mm
Wire Diameter:2mm

Belt Width 440mm( 4 Spiral pitch ):
Spiral pitch 110mm
Rod Pitch 7mm
Wire Diameter:2mm

Belt width 600mm( 6 Spiral pitch ):
Spiral pitch 100mm
Rod Pitch 7mm
Wire Diameter:2mm



SS Balanced Weave Conveyor Belt
Wire material: Stainless Steel 316
Wire Dia : 0.047 inches
Belt width: 6 inches
Belt length : 35 feet



Stainless steel eye link conveyor wire mesh belt
Material: Iron steel wire or stainless steel wire
Max width: 3.0m
Max length: 20m/roll
Hole size: min 5*20mm
Chain pitch: 1 - 4"
Eye-link conveyor belt in ss304 for food processing industry
Gap 20x10 mm, belt width of 350/300 mm, thickness of 1.6 mm.

stainless stell wire mesh conveyor,the application is salt with water
belt,conveyor:
size wd1.829m x lg63.9 m, material SS tp316L,
type wire cambridge,
fft: woven of 14 GA spirals and 11 GA cross rods

Furnace Conveyor Belts
Conveyer Width : 450 mm
Conveyer Thickness : 6 mm
Material: SS 316L

Spiral Wire Conveyor Belts

Mesh Diameter Other Mesh Diameter Other Mesh NO./m Mesh NO./m
4 6 33(radix) 40(circle)
3.5 3.5 33(radix) 40(circle)
2.8 2.8 52(radix) 60(circle)
2 2 57(radix) 71(circle)
2.8 2.8 72(radix) 80(circle)
2.8 3 92(radix) 100(circle)
2.8 2.8 105(radix) 118(circle)
2.8 2.8 60(radix) 138(circle)
1.6 1.6 72(radix) 80(circle)
1.6 1.6 105(radix) 118(circle)
1.6 1.6 125(radix) 138(circle)
1.6 1.6 158(radix) 158(circle)
1.2 1.2 92(radix) 100(circle)
1.2 1.2 105(radix) 118(circle)
1.2 1.2 92(radix) 138(circle)
1.2 1.2 158(radix) 158(circle)
0.9 0.9 158(radix) 158(circle)
