310 Stainless Steel Wire Mesh and 310 S- Used in Electric furnace, metallurgy, make heating elements and Resistive elements.

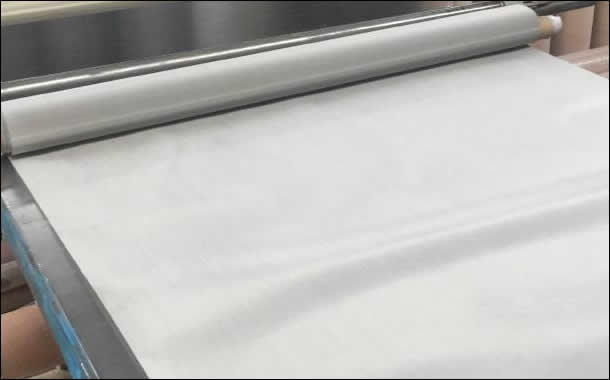

310 stainless steel wire mesh

310 stainless steel wire mesh offers high temperature resistance, its nominal oxidation resistance can reach 1150 C, superior over the 800 c temperature of 340 stainless steel. 310 wire mesh is commonly used in Chemicals, Oil, Aerospace, Automotive, metallurgy, and so on.

310 stainless steel mesh is commonly used as heat resistant mesh, high temperature mesh. Its high chromium content makes it resistant to oxidation when heated. The maximum safe temperature is about 2000°F.

310 ss wire cloth is also suitable for applications where a combination of corrosion and oxidation resistance, high strength, and toughness is essential. For example, 310 stainless steel wire cloth is commonly used in chemical processing equipment, heat exchangers, and oil field / refinery equipment, furnace equipment.



310S (0Cr25Ni20) Stainless Steel Wire Mesh

310S stainless steel is austenitic stainless steel. Because of the high content of chromium and nickel, 310S stainless steel wire mesh performs better oxidation and corrosion resistance than 304 in most environments. 310S stainless steel mesh contains 25% chromium and 20% nickel. The higher the percentage of chromium content, the better resistance of the ss material to high temperature. It can work continuously at a maximum temperature of 1200℃. Due to the high content of Nickel (Ni) and chromium (CR) , it has good oxidation resistance, corrosion resistance, acid and alkali resistance and high temperature resistance.

310S stainless steel wire mesh is available in both woven and welded structure. 310S stainless steel screen mesh is primarily used in power plant furnice, chemical processing equipment, oil field / refinery equipment. The following lists more industries 310S stainless steel wire mesh commonly used in.

Commonly Used Industries of 310S Wire Mesh


Petroleum/Chemical
Aerospace
Mining
Food processing
Pharmaceutical industry

  • Architectural



310 Series Wire Mesh (Fine or Coarse mesh)
Sizes

Grade : Alloy 310/310S/310H

Wire:018mm-8mm

Material: 310 and 310S

Aperture:0.01mm-100mm

Roll wdith: 0.5m,1m,1.2m,1.3m,1.5m,1.6m to.8m

Weaving: Plain weave or crimped weave
Difference between 310 ss and 310S ss is the carbon content in the material: 0.25% carbon in 310, 0.08% in 310S.



310/310S Stainless steel wire mesh 100x100 mesh. Each piece measures 11in x 341in with a wire diameter of 0.0045in.

Chemical Composition

C: ≤0.08,
SI: ≤1.500,
MN: ≤2.00,
P: ≤0.035,
S: ≤0.030,
Ni: ≤19.00-22.00,
CR: ≤24.00-26.00

Mechanical Properties
tensile strength (B)(MPA) : ≥520
yield strength (σs)(MPA) : ≥205
area reduction (ψ)% : ≥520



310 Stainless Steel Wire Mesh Benefits

Steel 310/310S offers excellent oxidation resistance property at temperatures 1035°C and at 1050°C while in regular use. Stainless steel 310/310s gives supreme oxidation resistance.

310 Stainless Steel Wire Mesh has a higher nickel content than T-309 stainless steel, and provides good strength and oxidation resistance at temperatures up to 2000°F.

Because of the high content of chromium and nickel, 310S stainless steel wire mesh performs better oxidation and corrosion resistance than 304 in most high temperature environments.

310 ss mesh varies widely in its mesh size, wire diameter, hole size. It can be cut, formed into many kinds of shapes, like round wire mesh disc, sheets, suitable for a wide range of environments.
